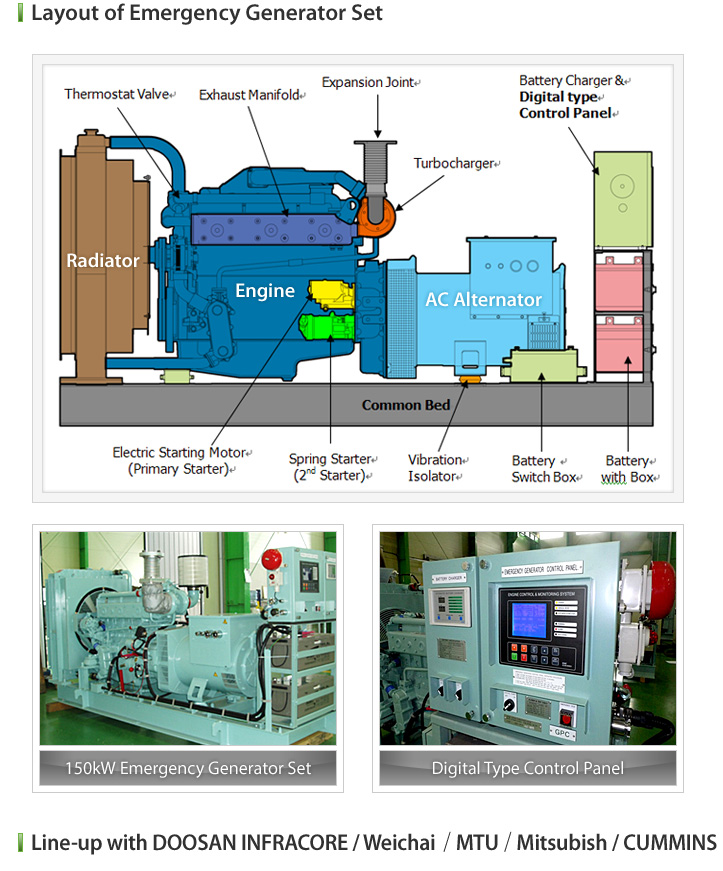

Marine Emergency diesel generator sets from 60kW to 2,000kW.
Generator sets are fully classed to major classification societies.
|
 |
 |
| |
Gen-set
Ratings
(kW) |
Diesel Engine |
Dimension
L x W x H |
Weight |
| Model |
Outpu
(kW) |
| 100 |
AD136TI |
138 |
2,800×1,150×1,550 mm |
1,700 kg |
| 120 ~ 125 |
2,850×1,150×1,550 mm |
1,800 kg |
| 130 |
AD086TI |
186 |
2,900×1,400×1,550 mm |
1,800 kg |
| 150 ~ 160 |
2,900×1,400×1,550 mm |
1,850 kg |
| 180 |
AD126TI |
247 |
3,000×1,450×1,550 mm |
2,500 kg |
| 200 |
3,000×1,450×1,550 mm |
2,500 kg |
| 250 |
AD158TI |
353 |
3,050×1,500×1,750 mm |
3,000 kg |
| 300 |
3,050×1,500×1,750 mm |
3,100 kg |
| 350 |
AD180TI |
441 |
3,100×1,550×1,800 mm |
3,850 kg |
| 400 |
3,100×1,550×1,800 mm |
3,950 kg |
| 450 |
AD222TI |
530 |
3,250×1,550×1,850 mm |
4,250 kg |
| 500 |
3,250×1,550×1,850 mm |
4,450 kg |
|
| |
▪ 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F” |
|
 |
| |
Gen-set
Ratings
(kW) |
Diesel Engine |
Dimension
L x W x H |
Weight (Kg) |
| Model |
Output
(kW) |
| 30 ~ 40 |
WP4CD55E201 |
50 |
2,300×900×1,400 mm |
1,250 kg |
| 41 ~ 50 |
WP4CD66E201 |
60 |
2,300×900×1,400 mm |
1,250 kg |
| 51 ~ 80 |
WP4CD100E201 |
90 |
2,400×900×1,400 mm |
1,300 kg |
|
| |
▪ 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F” |
|
 |
| |
Gen-set
Ratings
(kW) |
Diesel Engine |
Dimension
L x W x H |
Weight (Kg) |
| Model |
Output
(kW) |
| 500 ~ 570 |
S6R-MPTAW |
635 |
4,600 x 1,800 x 2,500 |
5,800 |
| 571 ~ 760 |
S12A2-MPTAW |
828 |
5,500 x 1,900 x 2,700 |
7,500 |
| 761 ~ 1,150 |
S12R-MPTAW |
1,270 |
5,600 x 2,200 x 2,700 |
11,300 |
| 1,151 ~ 1,550 |
S16R-MPTAW |
1,690 |
6,500 x 2,200 x 2,900 |
15,500 |
|
|
 |
| |
Gen-set
Ratings
(kW) |
Diesel Engine |
Dimension
L x W x H |
Weight (Kg) |
| Model |
Output
(kW) |
| 500 ~ 630 |
12V 2000 P82 |
695 |
4,450×2,100×2,650 |
6,600 |
| 631 ~ 850 |
16V 2000 P82 |
930 |
5,100×2,450×3,150 |
8,500 |
| 851 ~ 1,500 |
12V 4000 P83 |
1,680 |
6,400×3,800×2,750 |
13,800 |
| 1,501 ~ 1,950 |
16V 4000 P83 |
2,240 |
6,650×3,800×2,750 |
15,500 |
| 1,951 ~ 2,500 |
20V 4000 P83 |
2,800 |
8,500×3,800×3,600 |
21,200 |
|
| |
▪ 60Hz, 1,800rpm, AC450V, IP23, Insulation Class “H” with Temperature Rise Class “F” |
|
 |
| |
Gen-set
Ratings
(kW) |
Diesel Engine |
Dimension
L x W x H |
Weight |
| Model |
Output
(kW) |
| 600 ~ 910 |
KTA38DM |
1,007 |
5,200×1,850×2,650 mm |
8,000 kg |
| 920 ~ 1,100 |
KTA50DM |
1,220 |
6,000×1,850×2,650 mm |
11,500 kg |
| 1,200 |
QSK50DM |
1,343 |
7,000×2,500×2,950 mm |
14,800 kg |
| ~ 1,750 |
QSK60DM |
1,900 |
7,200×2,500×2,950 mm |
17,000 kg |
|
| |
| |
| |
|
|
